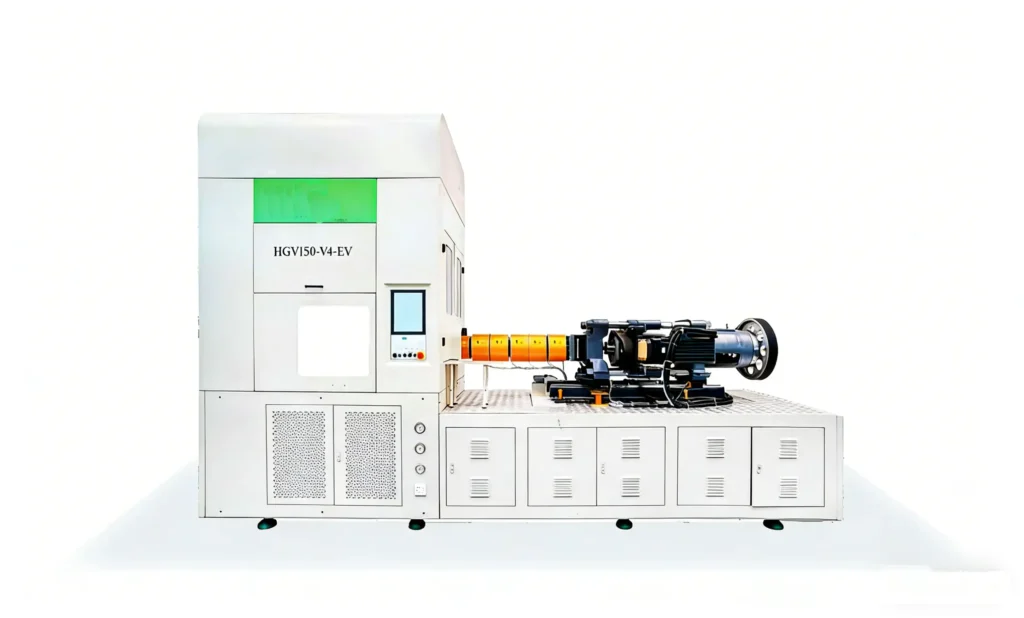

HGYS150-V4 EV Four-Station One-Step ISBM Machine Machine Introduction
The HGYS150-V4 is a high-efficiency, four-station, one-step injection stretch blow molding (ISBM) machine designed for PET and PETG bottle production. Integrating servo-controlled injection, stretching, and blowing systems, it ensures consistent bottle quality while significantly reducing energy consumption and labor costs.
Equipped with 10 independent servo motor control systems, dual-servo blow mold clamping, and a precision turntable driven by Yaskawa or WEICHI servo motors with TSUNTIEN reducers, this machine delivers precise, stable, and high-speed operation. Premium international components, including Parker high-pressure valves, Airtac cylinders, and NSK lead screws, guarantee long-term reliability.
The HGYS150-V4 supports flexible mold compatibility with Japanese ASB-12M molds and features energy-efficient nano far-infrared screw heating and an integrated temperature control system, making it ideal for high-volume, industrial-scale PET bottle production across beverages, cosmetics, pharmaceuticals, food packaging, and industrial liquids.
Contact us today for OEM solutions, bulk pricing, or to optimize your PET/PETG bottle production line.
HGYS150-V4 EV One-step ISBM Machine
High-efficiency four-station ISBM solution for PET/PETG bottles
Machine Layout
A: High Pressure Air Compressor | B: Gas Storage Tank | C: Cold Dry Filter | D: Cooling Tower | E: Chiller | F: Low Pressure Air Compressor | G: Mold Temperature Controller | H: ISBM Machine | I: Mechanical Arm
Machine Layout Table
| No. | Equipment Name |
|---|---|
| A | High Pressure Air Compressor |
| B | Gas Storage Tank |
| C | Cold Dry Filter |
| D | Cooling Tower |
| E | Chiller |
| F | Low Pressure Air Compressor |
| G | Mold Temperature Controller |
| H | ISBM Machine |
| I | Mechanical Arm |
*Layout diagram and table illustrate auxiliary equipment configuration and main ISBM machine components.*
Various Parameters of the
HGYS150-V4 EV Four-Station One-Step ISBM Machine
Product Dimensions
| Product Quantity (PCS) | Bottle Diameter (BD) (mm) | Bottle Height (H) (mm) | Neck Diameter (E) (mm) | Max. Bottle Volume (ml) | Max. Bottle Weight (g) |
|---|---|---|---|---|---|
| 1 | 118 | 210 | 83 | 2500 | 130 |
| 2 | 80 | 210 | 62 | 1500 | 65 |
| 3 | 66 | 150 | 54 | 900 | 43 |
| 4 | 56 | 100 | 38 | 400 | 32 |
| 5 | 45 | 100 | 32 | 250 | 26 |
| 6 | 28 | 30 | 20 | 100 | 16 |
Machine Parameters
| Machine Parameter | Specification |
|---|---|
| Screw Diameter | 50 mm (Optional) |
| Theoretical Injection Capacity | 392 g |
| Injection Clamping Force | 150 kN |
| Upper Mold Stroke | 250 mm |
| Lower Mold Stroke | 205 mm |
| Temperature Regulating Core Stroke | 250 mm |
| Temperature Regulating Barrel Stroke | 230 mm |
| Take-out Stroke | 170 mm |
| Blowing Clamping Force | 200 kN (Single Side) |
| Blow Core Stroke | 250 mm |
| Blow Mold Stroke | 75 + 75 mm |
| Machine Size (L × W × H) | 5.2 × 1.8 × 3.3 m |
| Total Weight | 7 Tons |
Product Specification
| Item | Unit | Specification |
|---|---|---|
| Machine Name | — | One-step Injection Stretch Blow Moulding Machine (4-Station) |
| Model | — | HGY150-V4-EV |
| Manufacturer | — | HENGGANG |
| Applicable Material | — | PET / PETG |
| Screw Diameter | mm | 40 |
| Theoretical Injection Volume | cm³ | 188 |
| Screw Rotational Speed | rpm | 350 |
| Injection Clamping Force | kN | 150 |
| Blowing Clamping Force | kN | 200 |
| Motor Power | kW | 102.8 |
| Heating Power | kW | 10 |
| Blowing Air Pressure | MPa | 2.0 – 3.5 |
| Cooling Water Pressure | MPa | 0.4 – 0.6 |
| Machine Oil Cooler Water Pressure | MPa | 0.3 – 0.4 |
| Machine Oil Cooler Water Temperature | °C | 20 – 25 |
| Voltage | V | 370 – 400 |
| Machine Size (L × W × H) | mm | 5200 × 1800 × 3300 |
| Machine Weight | ton | 7 |
Technical Highlights of the
HGYS150-V4 EV Four-Station One-Step Injection Stretch Blow Molding Machine
1. Advanced Multi-Servo Control System
The machine is equipped with 10 independent servo motor control systems, providing precise synchronization for injection, stretching, clamping, and rotation. This design significantly improves production stability, bottle consistency, and energy efficiency.
2. High-Performance Servo Drive Solution
Powered by Inovance or WEICHI servo motors with a total power of 102.8 kW, the system ensures smooth motion control, reduced vibration, and lower energy consumption compared with conventional hydraulic systems.
3. Precision Turntable Transmission
The rotary table is driven by a Yaskawa servo motor (Japan) or WEICHI servo motor, combined with a TSUNTIEN reducer from Taiwan, delivering highly accurate positioning and stable high-speed operation.
4. Dual-Servo Blow Mold Clamping System
The blow molding structure adopts a dual-servo mold clamping mechanism with high-pressure compensation technology, ensuring stronger clamping force, improved sealing performance, and consistent bottle quality.
5. Premium International Components
To ensure long-term reliability, the machine integrates high-quality components from globally recognized brands, including Parker high-pressure valves (USA), Airtac pneumatic cylinders, and NSK precision lead screws (Japan).
6. Energy-Efficient Heating Technology
The screw heating system uses nano far-infrared energy-saving heating rings (10 kW), which provide faster heating speed, better thermal efficiency, and reduced power consumption.
7. High-Precision Temperature Control
An integrated temperature control box offers accurate temperature regulation, stable performance, and simplified operation for operators.
8. Flexible Mold Compatibility
The machine is compatible with Japanese ASB-12M molds, allowing manufacturers to expand production capabilities and adapt to different bottle designs.
| Item | Specification |
|---|---|
| Servo Control System | 10 Sets of Servo Motor Control Systems |
| Servo Motor Brand | Inovance / WEICHI |
| Total Servo Motor Power | 102.8 kW |
| Control System | Inovance PLC / MIRLE Control System |
| Turntable Drive | Yaskawa Servo Motor (Japan) or WEICHI Servo Motor |
| Reducer | TSUNTIEN Reducer (Taiwan) |
| Mold Clamping System | Dual Servo Motor Clamping with High-Pressure Compensation |
| High-Pressure Valve | Parker (USA) |
| Pneumatic Components | Airtac Cylinders |
| Temperature Control | Integrated Temperature Control Box |
| Heating System | Nano Far-Infrared Energy-Saving Heating Ring (10 kW) |
| Lead Screw | NSK (Japan) |
| Mold Compatibility | Compatible with ASB-12M Mold |
| Total Machine Power | 112.8 kW |
